Mavitek MCCU8 Cavity Combiner Datasheet
MCCU8 Series
380-470MHz UHF Cavity Combiner
Up to 20MHz isolation bandwitdh.
High isolation of over 70dB between output ports with dual isolators (@ >450kHz spacing).
150 Watt RF input capability with 200mm aluminium cavities.
Please check the datasheet for ordering channel and frequency product codes.
| Model No | MCCU8 Series |
| Electrical Specifications | |
| Frequency Range | 380-470MHz (in 20MHz sub-bands) |
| Number of Channels | 2 / 3 / 4 / 5 / 6 / 7 / 8 |
| Isolation Tx-Tx | >70dB (Tx-Tx spacing >450kHz) |
| VSWR (max.) | 1.5:1 |
| Maximum Input Power | 150Watts |
| Minimum Channel Spacing | >250kHz |

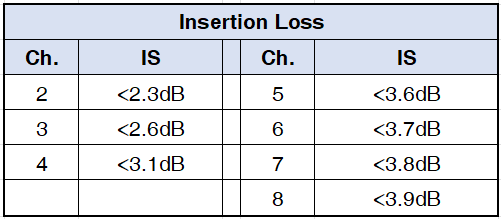

| Insertion Loss | Please check graph tab |
| Ordering Product Codes | Please check datasheet |
| Mechanical Specifications | |
| Frequency Stability | 1.0ppm/°C |
| Connector Type | N-Type Female |
| Mounting | Please check datasheet |
| Weight | Please check datasheet. |
| Operating Temperature Range | -30˚to +60˚C |
