Mavitek MCCV10 VHF Cavity Combiner Datasheet
MCCV10 Series
136-174MHz VHF Cavity Combiner
Up to 10MHz isolation bandwitdh.
High isolation of over 75dB between output ports with dual isolators (@ >150kHz spacing).
150 Watt RF input capability with 250mm aluminium cavities.

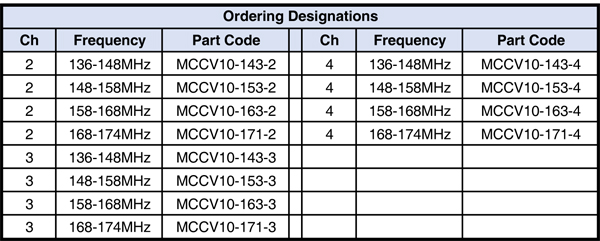

Please check the datasheet for ordering channel and frequency product codes.
| Model No | MCCV10 Series |
| Electrical Specifications | |
| Frequency Range | 136-174MHz (in 10MHz sub-bands) |
| Number of Channels | 2 / 3 / 4 |
| Isolation Tx-Tx | >75dB (@ >150kHz spacing) |
| VSWR (max.) | <1.5:1 |
| Maximum Input Power | 150Watts |
| Minimum Channel Spacing | >75kHz |
| Insertion Loss | 2 Ch: <2.3dB / 3 Ch: <2.7dB / 4 Ch: <3.1dB |
| Mechanical Specifications | |
| Frequency Stability | 1.0ppm/°C |
| Connector Type | N-Type Female |
| Mounting | 19” Rack 2Ch:11U 3Ch:15U 4Ch:18U |
| Weight | 2 Ch: 15kg / 3 Ch: 21kg / 4 Ch: 27kg |
| Operating Temperature Range | -25˚to +60˚C |
