MCCV8-127-2 / MCCV8-127-3 / MCCV8-127-4
118-137MHz Airband Cavity Combiner
Adjustable 200mm aluminium cavities. High isolation of over >75dB between output ports with dual isolators (@ >150kHz spacing).
150 Watt RF input capability. Adjustable Dual isolators with removable loads for testing and inspection.

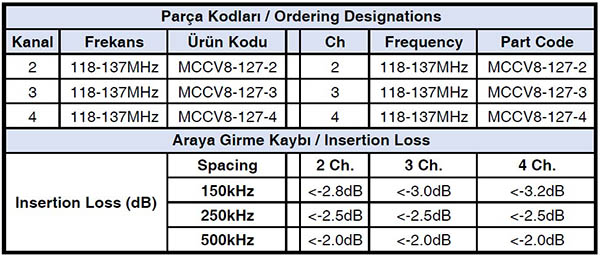

Please check the graph for insertion loss values
Please check the datasheet for ordering channel and frequency product codes.
| Model No | MCCV8 Series |
| Electrical Specifications | |
| Frequency Range | 118-137MHz |
| Number of Channels | 2 / 3 / 4 |
| Isolation Tx-Tx | >75dB ( >80dB with triple isolators) |
| Nominal Impedance | 50Ω Nominal |
| Maximum Input Power | 150Watts |
| VSWR (max.) | <1.5:1 |
| Minimum Channel Spacing | >75kHz |
| Mechanical Specifications | |
| Frequency Stability | 1.8ppm/°C |
| Connector Type | N-Type Female |
| Mounting | 19” Rack 2Ch:6U 3Ch:10U 4Ch:12U |
| Weight | 2 Ch:13kg / 3 Ch:19kg / 4 Ch:25kg |
| Operating Temperature Range | -25˚to +55˚C |
