MHCU Series
380-470MHz Hybrid Combiner
19” Rack mounting design, 3U height
Up to 30MHz isolation bandwitdh. High isolation of over 100dB between output ports with dual isolators
50 Watt RF input capability. N-Type input and output connectors.
Please check the graph for insertion loss values

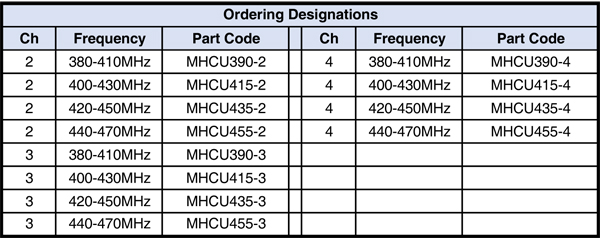

Please check the datasheet for ordering channel and frequency product codes.
| Model No | MHCU Series |
| Electrical Specifications | |
| Frequency Range | 380-410 / 400-430 / 420-450 / 440-470MHz |
| Number of Channels | 2 / 3 / 4 |
| Isolation Tx-Tx | >100dB |
| Isolation Bandwidth | 30MHz |
| Maximum Input Power | 100 Watt |
| Nominal Impedance | 50Ω Nominal |
| Mechanical Specifications | |
| Connector Type | N-Type Female |
| Mounting | 19" Rack / 3U Height |
| Operating Temperature Range | -15˚to +50˚C |
