Mavitek MHCV Series Hybrid Combiner Datasheet

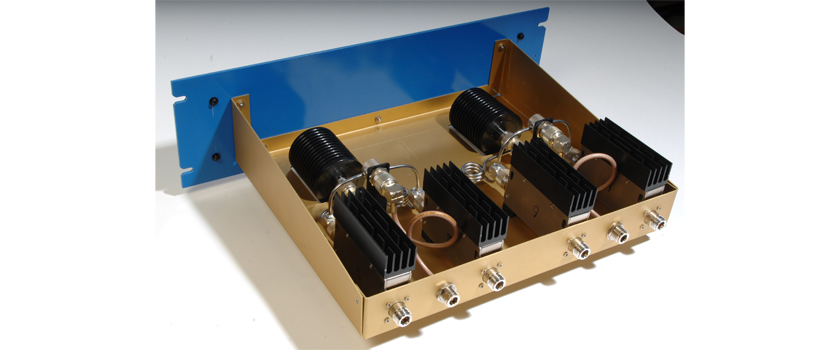

MHCV Series
136-174MHz Hybrid Combiner
19” Rack mounting design, 2U height
Up to 12MHz isolation bandwitdh. High isolation of over >100dB between output ports with dual isolators.
100 Watt RF input capability. N-Type input and output connectors.

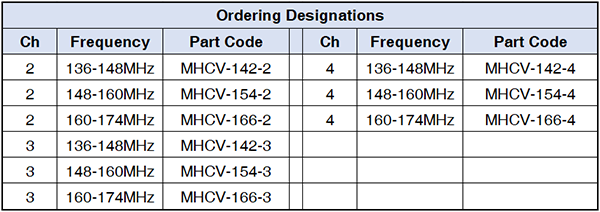

Please check the datasheet for ordering channel and frequency product codes.
| Model No | MHCV Series |
| Electrical Specifications | |
| Frequency Range | 136-148 / 148-160 / 160-174MHz |
| Number of Channels | 2 / 3 / 4 |
| Isolation Tx-Tx | >100dB |
| Isolation Bandwidth | 12MHz |
| Maximum Input Power | 100 Watt |
| Nominal Impedance | 50Ω Nominal |
| Mechanical Specifications | |
| Connector Type | N-Type Female |
| Mounting | 19" Rack / 2U Height |
| Operating Temperature Range | -30˚to +60˚C |
| Weight | 2 Channel: 3.5kg / 3 Channel: 4.5kg / 4 Channel: 5.5kg |
