MUD6C425

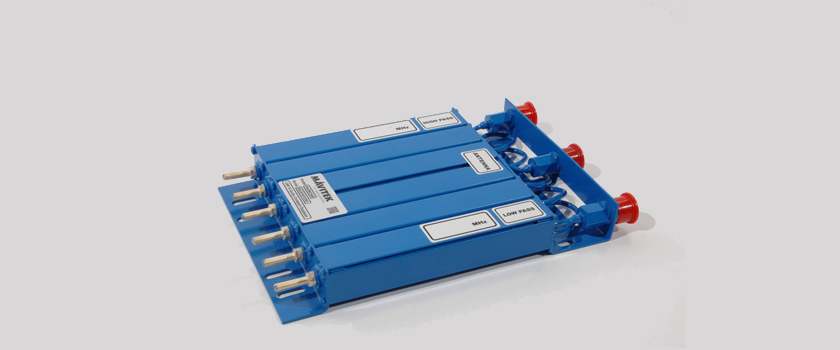

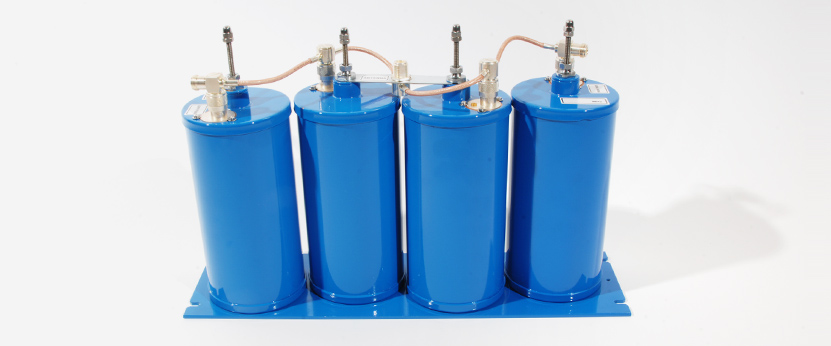

6 Cavity Compact UHF Duplexer
Mavitek MUD series band pass/band reject, 4 cavity duplexers are designed and produced for the 380-470MHz band. They perform simultaneous receive and transmit function into the same antenna with minimum insertion loss and maximum performance. MUD series duplexers are blue enamel painted copper. The connectors are silver plated and PTFE insulated. MUD series are configured as industrial standard 19”/3U rack mount. With high “Q” values they achieve maximum isolation and superior performance with 5MHz Rx/Tx frequency shift. MUD series perform flawlessly under extreme conditions like -30ºC to +60ºC under 250Watts maximum input power. They are the ideal choice for full duplex repeaters and base stations. MUD series duplexers will be tuned to the frequencies required by the customer and shipped ready for installation. If field retuning is needed, it can be performed flawlessly by the “Invar” tuning rod within the duplexer’s frequency range.
Model No MUD6C425

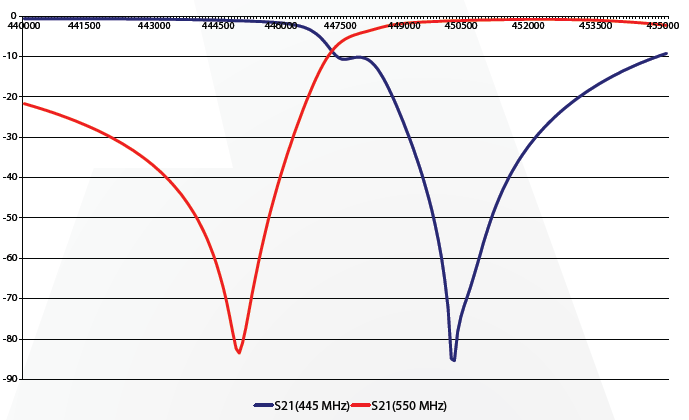

Electrical Specifications
Frequency Range 5MHz
Minimum Frequency Separation 1.5:1
Maximum Input Power 50Ω Nominal
Insertion Loss Tx/Rx to Ant. 1.2dB (5MHz spacing)
VSWR (max.) 80dB typical
Rx Isolation at Tx Frequency 410-440MHz
Empedansı 50W
Mechanical Specifications
Operating Temperature Range N-Type Female
Frequency Stability Mavi/Parlak Enamel
Dimensions Between -10°C and +40°C
Weight 20ppm/°C
Connector Type 1075gr
Color / Paint 157x32x246mm
Number of Cavities 6
MUD6C425
Mavitek MUD6C425 Türkçe Broşür
Mavitek MUD6C425 Türkçe Broşür
İNDİR
Mavitek MUD6C425 English Leaflet
Mavitek MUD6C425 English Leaflet
İNDİR
