MUK1402PR8
Bandpass/Bandreject

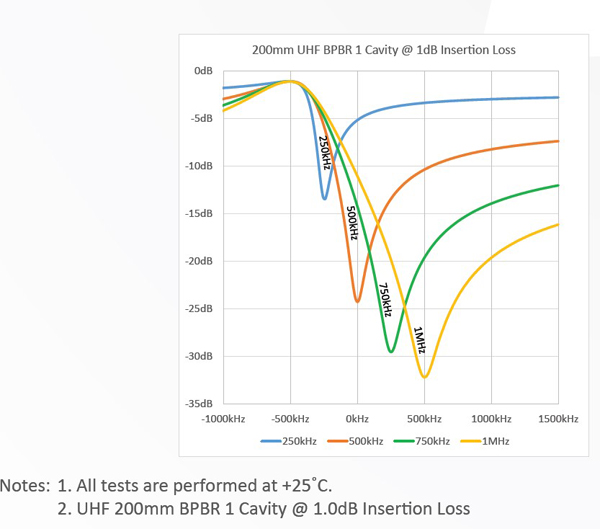

Mavitek MUK series bandpass cavity filters in 200mm (8”) diameter are designed and produced to meet high selectivity specifications. MUK series filters are made from high quality aluminum using robotic welding. They can be painted to the color of choice of the customer. Connectors used on the filters are silver-plated and PTFE insulated with high durability against temperature changes. Different connector options are available at the request of the customer. With high “Q” values the filters achieve maximum isolation and superior performance even with 250kHz Rx/Tx frequency shift.

Ordering Designations:
380-424MHz: MUK1402PR8
424-468MHz: MUK1446PR8
468-512MHz: MUK1490PR8
Model No MUK1402PR8
Electrical Specifications
Frequency Range 380-424 / 424-468 / 468-512MHz
Maximum Input Power 300 Watts (0.5dB I.L.) 250 Watts (1.0dB I.L.) 150 Watts (2.0dB I.L.)
Insertion Loss Between 0.4 and 3.0dB
VSWR (max.) 1.5:1
Impedence 50Ω Nominal
Frequency Stability 1.5ppm/°C
Mechanical Specifications
Operating Temperature Range Between -30°C and +60°C
Number of Cavities 1 / 200mm (8 inch)
Connector Type N-Type Female
Color / Paint Customer Selection
Weight 2.20kg / 4.85lbs
Dimensions 200 x 220mm
Material Aluminium
Mounting Mounting holes with M5 screws for horizontal rack mounting. Optional 19” Rack tray is available.
MUK1402PR8
Mavitek MUK1402PR8 UHF Bandpass Filter English Datasheet
Mavitek MUK1402PR8 UHF Bandpass Filter English Datasheet
