MVK127P8
Bandpass
Mavitek MVK series band pass filters are designed and produced for the 117-138MHz VHF airband. MVK series cavity filters are made of blue enamel painted copper. The connectors are silver plated and PTFE insulated. MVK series band pass filters can be ordered either in standard tuning rod configuration (MVD127P8) or nonelongating tuning rod (MVK127P8NE).
MVK series perform flawlessly under extreme conditions from -30˚C to +60˚C, supporting 350Watts (1dB IS) or 250W (2dB IS) maximum RF input power. They are the ideal choice Air Traffic Control (ATC) systems.
Model No MVK127P8
Electrical Specifications
Frequency Range 117-138MHz
Maximum Input Power 350W (1dB attenuation) 250W (2dB attenuation)
VSWR (max.) 1.5:1
Impedence 50Ω Nominal
Mechanical Specifications
Operating Temperature Range Between -30°C and +60°C
Number of Cavities 1 / 200mm (8 inch)
Connector Type N-Type Female
Color / Paint Blue / Glossy Enamel
Weight 5.5kg
Dimensions 200 x 800mm

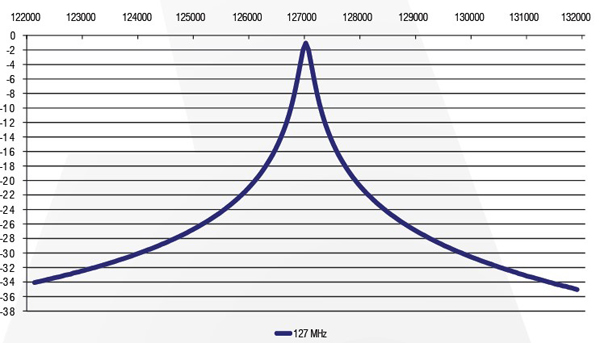

MVK127P8
Mavitek MVK127P8 VHF Bandpass Türkçe Broşür
Mavitek MVK127P8 VHF Bandpass Türkçe Broşür
İNDİR
Mavitek MVK127P8 VHF Bandpass English Datasheet
Mavitek MVK127P8 VHF Bandpass English Datasheet
İNDİR
