MVD4030

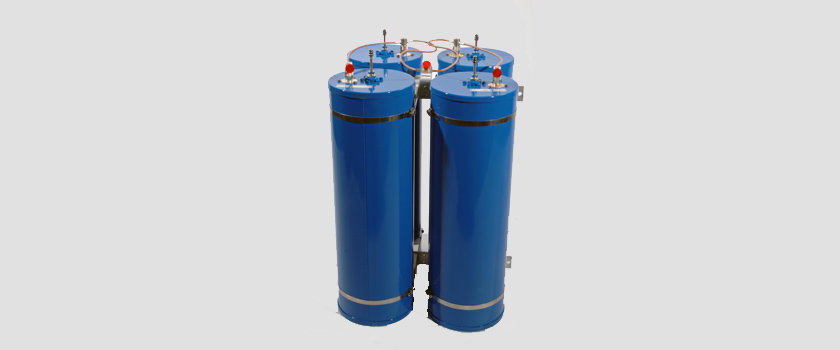

4 Cavity VHF Low Band Duplexer
| Model No | MVD4030 |
| Electrical Specifications | |
| Frequency Range | 30-40MHz |
| Minimum Frequency Separation | 300kHz |
| Maximum Input Power | 350W (1dB attenuation) 250W (2dB attenuation) |
| Insertion Loss Tx/Rx to Ant. | 1.5dB (Adjustable) |
| VSWR (max.) | 1.5:1 |
| Rx Isolation at Tx Frequency | More than 80dB |
| Tx Isolation at Rx Frequency | More than 80dB |
| Impedence | 50Ω Nominal |
| Mechanical Specifications | |
| Operating Temperature Range | Between -30°C and +60°C |
| Number of Cavities | 4 / 200mm |
| Connector Type | N-Type Female |
| Color / Paint | Blue / Glossy Enamel |
| Weight | 81kg |
| Dimensions | 440x2700x460mm |
| Mounting | 19" Rack |
RELATED SERIES
MVD4143
4 Cavity VHF Duplexer

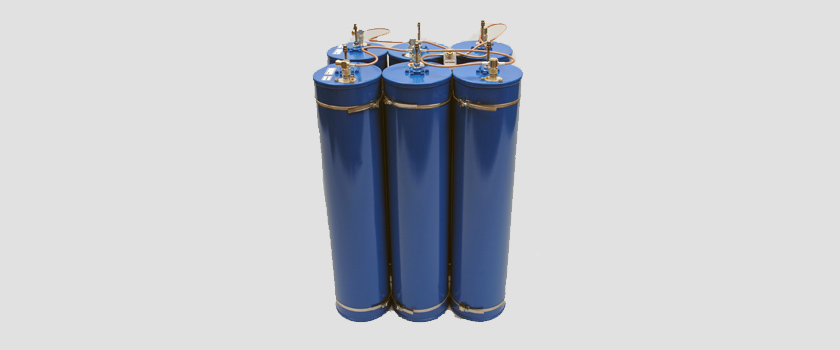

MVD6138
